Vertical multistage pump
Flow Rate:0.5~240 m³/h
Head range: 4~305 m
Motor Power:0.37~110KW
Speed range:2900/2950 r/min
Ambient temperature:≤40℃
Insulation Class: F+
IP Rating: IP55+
Maximum working pressure -
of pump system: ≤1.0MPa
Features
Configuration
| Regular Configuration |
| ➣Cast Iron Pump Body(CDL) / 304 Stainless Steel Pump Body(CDLF) |
| ➣2- pole IE3 Motor |
| ➣304 Stainless Steel Pressure Tank |
| ➣304 Stainless Steel Impeller |
| ➣304 Stainless Steel Shaft |
| ➣SS304 Stainless Steel Wetted Parts |
| Additional Options |
| ➣PMSM (Permanent Magnet Synchronous Motor) |
| ➣ VFD Motor (Variable Frequency Motor) |
| ➣Ex Motor (Explosion-proof Motor) |
| ➣IE4 Motor / IE5 Motor |
Should Be Used
CDLF and CDL Vertical multistage pump is a multifunctional product that can convey various different media ranging from tap water to industrial liquids. It is suitable for different temperature, flow and pressure ranges.
CDL is applicable to non-corrosive liquids, while CDLF is suitable for slightly corrosive liquids.
● Water supply: filtration and transportation in water plants, district water supply in water plants, booster for main pipes, booster for high-rise buildings.
● Industrial boosting: process water systems, cleaning systems, high-pressure flushing systems, fire protection systems.
● Industrial liquid transportation: cooling and air conditioning systems, boiler feed water and condensation systems, machine tool accessories, acids and alkalis.
● Water treatment: ultrafiltration systems, reverse osmosis systems, distillation systems, separators, swimming pools.
● Irrigation：Agricultural irrigation, sprinkler irrigation, drip irrigation.
●New energy：Liquid cooling system,Data Center,Energy storage industry
Pump Introduction

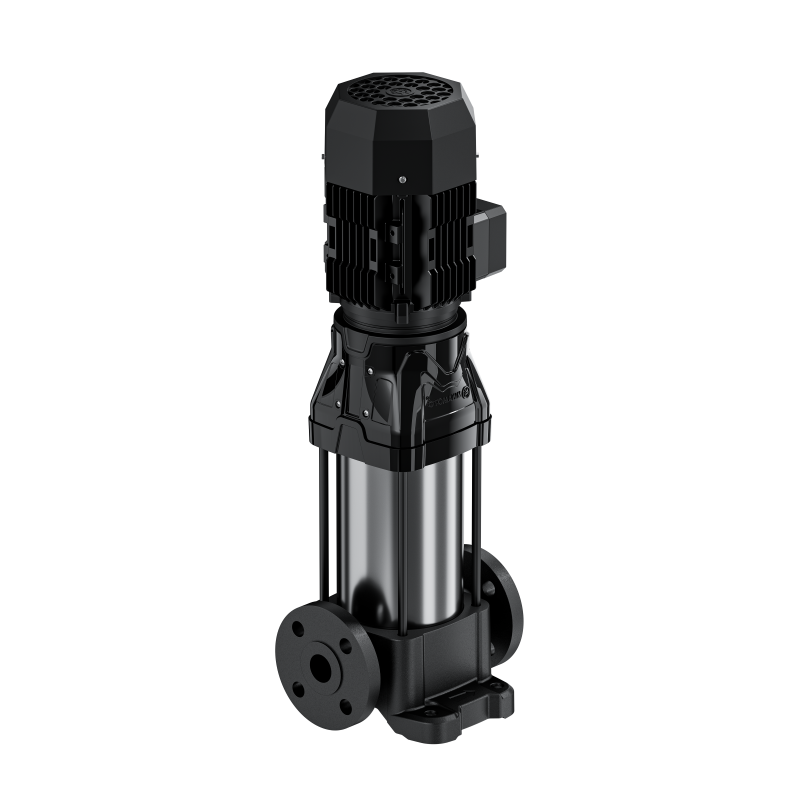

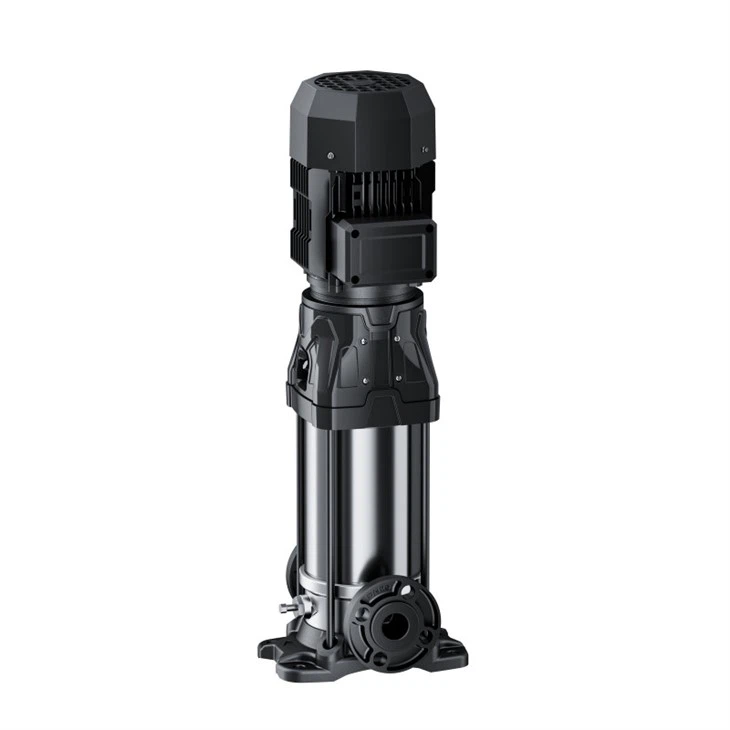

CDLF and CDL Vertical multistage pump is a non-self-priming vertical multi-stage centrifugal pump for standard motors.
The motor shaft is directly connected to the pump shaft through the pump head using a coupling.

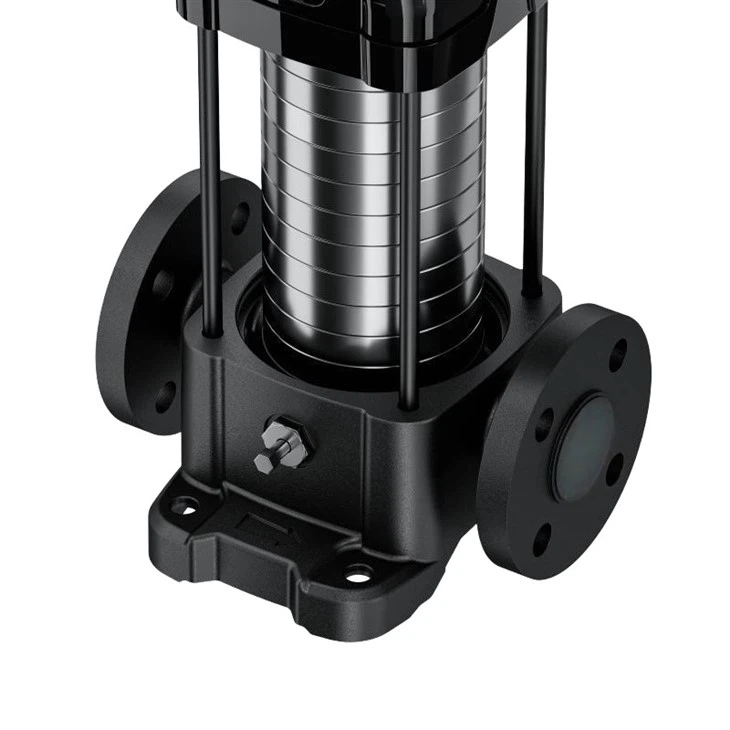

The pull rod bolts fix the pressure-resistant cylinder and flow components between the pump head and the inlet and outlet sections. The inlet and outlet of the pump are on the same straight line at the pump base. This pump can be equipped with an intelligent protector according to needs, which can effectively protect the pump from dry running, phase loss, overload, etc.
Products Of Advantages
Product Center
Full SS304 Wetted Parts
All flow-passage components, pressure tank and impeller are crafted from high-grade Stainless Steel 304 for superior durability and media purity. The pump body material is selectable based on application needs.
Proprietary Thermal Management
Our self-developed housing and fan cover maximize the heat dissipation surface area, effectively lowering motor temperature rise and ensuring stable operation.

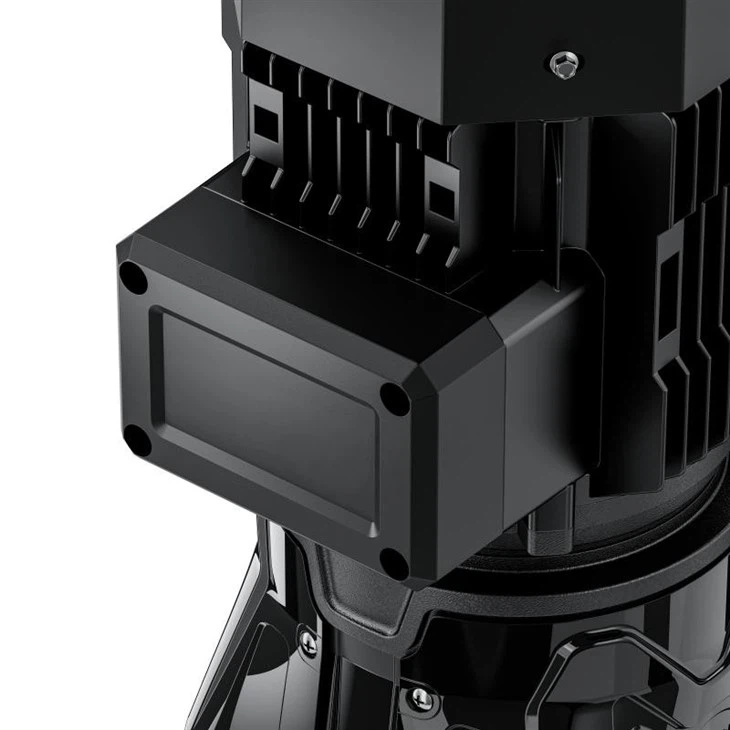

High-Protection Terminal Box
Features a one-piece molded tongue-and-groove join to enhance sealing integrity and its overall protection (IP) rating.
Optional Configuration
To meet various energy efficiency and operational requirements, we offer more than five different motor options for selection.
