Products

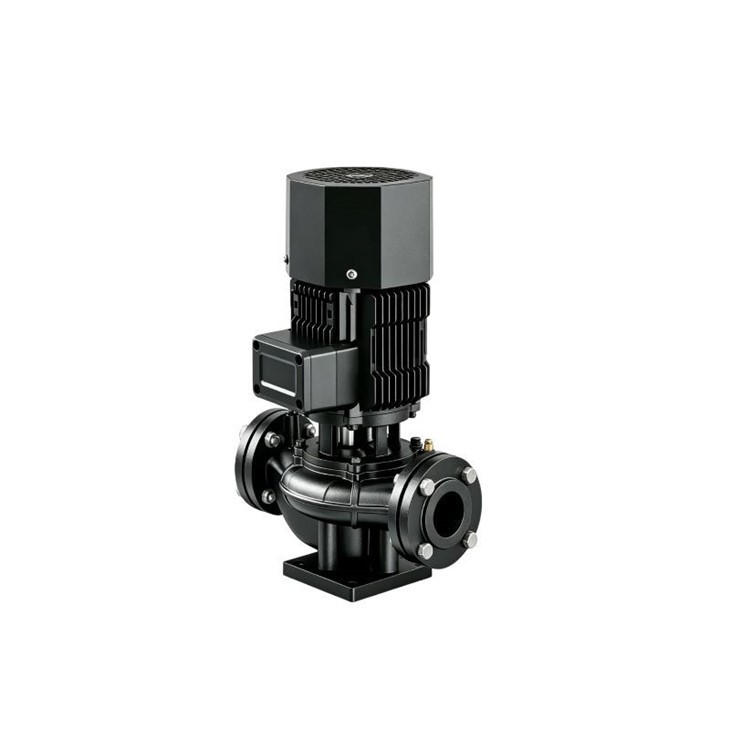

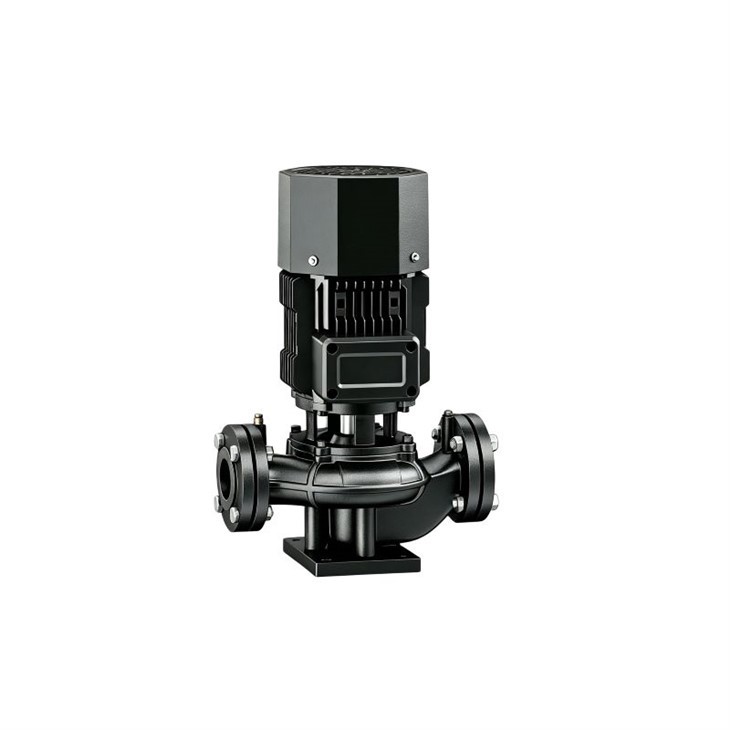

Vertical Single Stage Inline Pump
Flow Rate: 1~250m³/h
Head range: 8~50m
Caliber: 32~125mm
Motor power: 0.37~15kW
Speed range: 2900r/min
Ambient temperature:≤40℃
Insulation Class: F+
IP Rating: IP55+
Features
Included as Standard
| ➣ 2-pole IE3 Motor |
| ➣Cast Iron Pump Body |
| ➣E-coated & Cast Iron Impeller |
| ➣Stainless Steel Shaft |
Product Introduction

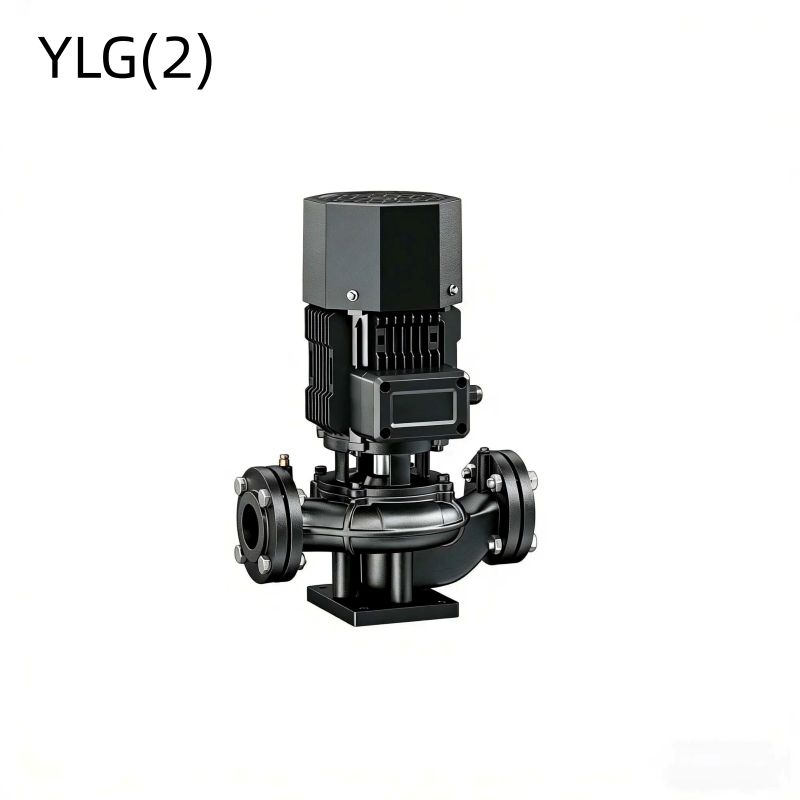

The YLG(2) series vertical single stage inline pump is mainly used for transferring water at normal temperature or liquids with physical and chemical properties similar to water. It is widely used in mechanical systems and equipment such as water supply, refrigeration, fire protection, electroplating, chemical processing, and wastewater treatment systems.
Its key features include a compact structure, low noise, high efficiency, greater durability, minimal installation space, small size, and easy maintenance.
Project

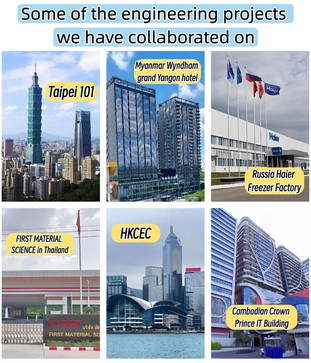

Our pumps have been applied in projects across Taipei, Hong Kong, Thailand, Myanmar, Cambodia, and Russia, serving hotels, factories, cooling plants, office buildings, and more. These overseas projects are strong proof of our product reliability, factory strength, and practical project experience. With stable quality, strict inspection, and flexible support, we help customers build pump systems they can trust.
Why choose us
why choose us
At present, our company has 2 production base in Guangdong and Fujian province in China, with about 100000㎡ covering area. Our centrifugal pumps and water treatment solutions that well-known for their high quality and reliability are widely used in Circulating Water Systems, HVAC, Water Supply Systems, Environmental Protection, Agricultural Irrigation, Energy and Chemical Industry.
Based on "Quality First" production philosophy, we offer an extensive portfolio of over 50 product series and 6,000 specific models and configurations, allowing our customers to customize products tailored to their specific operating conditions and energy efficiency requirements. Moreover, We provide OEM and joint R&D services to meet the global demand for branding and technological partnership.
Qualification Certificate
Sales And Service Network
FAQ
Q: What does "inline" mean for this type of pump?
A: "Inline" means the inlet and outlet are on the same straight line, so the pump can be installed directly into the pipeline. This makes the layout cleaner and helps reduce the need for extra pipe bends or fittings.
Q: Is this pump a good option for systems with limited piping space?
A:Yes, it works especially well in compact piping setups. Because it sits right in the line, it helps keep the system simple and avoids unnecessary pipe routing, which can also help reduce pressure loss.
Q: Does an inline pump affect system pressure stability?
A: When properly selected, it can help maintain steady flow and pressure within the system. It is often used in applications where consistent performance is needed without adding complexity to the piping layout.
